Introduction

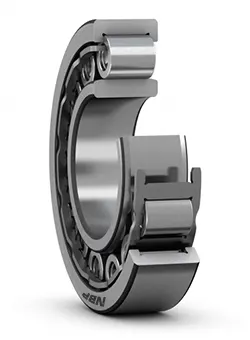

Cylindrical roller bearings make up the core of millions of machines, driving smooth rotation under heavy radial loads and severe speeds. The parts excel in industries ranging from automotive production to wind power due to their toughness and adaptability. Fundamentally, the inner ring and outer ring collaborate with rollers and cages to support loads and reduce friction. This article goes into great depth on the functions of such rings, detailing innovative geometries such as cylindrical roller bearings without inner ring or outer ring. Filled to the brim with real-world information and new ideas, this piece strives to become a reference standard for engineers and professionals in the industry, providing more than what has previously existed.
Cylindrical Roller Bearing Inner Ring
The inner ring, also referred to as the inner race, is tightly fitted onto the turning shaft, conveying loads while maintaining alignment. Its robust construction withstands severe mechanical stress to ensure machines move smoothly even under challenging conditions.
Imagine the inner ring to be a race for cylindrical rollers, leading them as they bear radial loads from the shaft. Its bore is precision-machined to hold onto the shaft securely, frequently with a press-fit to prevent any slipping while spinning quickly. Most designs feature ribs—fixed or removable—to maintain rollers in alignment and avoid them sidetracking. Consider NJ-type bearings as an example: a solitary rib on the inner ring allows them to support axial loads in one direction, ideal for electric motor shafts. NUP-type bearings take the next step with a free rib and loose thrust collar, prepared to face axial loads in both directions in precision applications such as machine tools.
Materials and Workmanship
Constructed with resilient chrome steel or case-hardened steel, the inner ring resists wear and heavy loads. Some producers employ selective heat treatments, such as NTN's Austenite Strengthening, to incorporate a layer of retained austenite on the surface, increasing durability by as much as 1.5 times. Accurate grinding keeps tolerances tight, reducing vibrations and allowing rollers to glide smoothly. In high-duty applications like machine tool spindles, extra treatments like nitriding or polishing reduce friction and make the inner ring last longer in extreme conditions.
Design Variations and Practical Applications
The inner ring is available in various flavors to suit particular applications. N-type cylindrical roller bearings consist of two fixed inner ring ribs and a smooth outer ring, enabling the shaft to move slightly when heated up—excellent for large electric motors. NUP-type bearings, featuring a fixed rib and thrust collar, are able to withstand axial loads in both directions and are thus a popular choice with precision machinery. The reason that the inner ring is removable from the outer ring makes it a simple task to assemble and maintain, particularly in heavy machinery such as gearboxes or rolling mills, where downtime will prove an expensive nightmare.
Cylindrical Roller Bearing Outer Ring
The outer ring, or outer race, goes around the rollers and attaches to the stationary housing, spreading loads and keeping things stable. It’s designed to work reliably no matter what.
Consider the outer ring as the outer track for rollers, transferring loads to the housing. It's typically fitted with some slack to permit axial movement under non-locating configurations, accommodating shaft expansion due to heat. In NU-type bearings, the outer ring features two stationary ribs to support rollers, but the inner ring is rib-free, allowing the shaft to slide—a configuration widespread in wind turbine gearboxes. The robust design of the outer ring maintains rollers in line and minimizes friction, even with heavy radial loads.
Materials and Surface Treatments
Constructed from high-purity chrome steel or alloy steel, the outer ring is hardened through heat treatment to remain strong and fatigue-resistant. Additional protection is applied to certain designs, such as NTN's MEGAOHM™ ceramic coating, which protects against electrical pitting in equipment such as wind turbine generators or locomotive motors. Precision machining produces a smooth raceway, which reduces wear and tear. In a rigid environment, such as mining or steel mills, phosphate coatings on the outer ring prevent rust and extend the service life of bearings.
Applications and Configurations
The design of the outer ring varies depending on the type of effect. NJ-type bearings have the same rib on the outer ring, which supports the axial load in one direction, while the NF-type bearings reverse with two ribs on the outer ring and upside down with a single rib on the internal ring. The separation of the outer ring features easy assembly in large machines, such as continuous casting machinery, where the alignment ring design of NSK enhances reliability. Full-complement cylindrical roller bearings, which eliminate the cage to provide more rollers, rely on the strength of the outer ring to support larger loads, although they are slower owing to increased friction.
Cylindrical Roller Bearing Without Outer Ring
Cylindrical roller bearings without the outer ring, for instance, RN or RNU series, utilize the machine’s housing as the outer raceway; therefore, they are a compact, lightweight option for tight places.
The bearing has a roller and cage assembly under the direction of the inner ring, with the housing serving as the outer raceway. The housing must be hardened to 58-62 HRC and ground smooth to maintain rollers in operating condition and prevent wear. This configuration reduces the diameter outside the bearing, making it suitable for tight locations such as auto transmission or short electric motors. Leaving the outer ring is a weight and space savings, a major advantage in aerospace or robotics.
Design Challenges and Solutions
Without an outer ring, the surface quality of the housing is paramount. Any imperfection will lead to rollers tilting or rapidly wearing down, so the housing requires excellent hardness and tolerances. The inner ring must step in, commonly utilizing ribs to guide rollers. Lubrication is a major consideration here, with constant roller contact beating up the housing. Grease or oil systems must maintain a constant lubricating film to avoid damage, particularly in heavy-load arrangements.
Where They Shine
These bearings appear in needle roller uses, such as rocker arm pivots, compressors, or planetary gears in automobile transmissions. Their small size allows them to inhabit cramped areas without sacrificing radial load capacity. But their dependence on the quality of the housing restricts them in high-speed or super-heavy use, where common bearings with an outer ring are the safer choice.
Cylindrical Roller Bearing Without Inner Ring
Cylindrical roller bearings without inner rings, such as RNU or RNA series, rotate the shaft to the inner raceway, increasing load capacity and space saving in heavy-duty applications.
Here, the cage and roller assembly are aligned with the help of the outer ring, and the shaft itself is used as the inner raceway. The shaft must be hardened to 58-62 HRC and ground to a fine finish to prevent wear and provide smooth roller contact. This design omits the inner ring so that larger rollers with the ability to support more radial load can be used. It's an excellent option for applications such as crane sheaves or main shafts of wind turbines.
Design and Material Requirements
The surface of the shaft is all that matters here. Scratches or any imperfections can produce stress points and premature failure, and therefore, it must be of high quality. The outer ring often has ribs for the alignment of rollers. Lubrication systems have to be robust to be able to sustain a protective film between rollers and shaft, especially in high loads. Chrome steel or even ceramic rollers reduce frictional cutting and increase resilience in harsh environments.
Applications and Benefits
They are designed for heavy radial loads in confined spaces, such as mining gearboxes or wind turbine shafts. Larger rollers provide greater load capability without increasing the footprint. NSK's full-complement crane sheave designs, for instance, cram more rollers into a design and include seals to combat corrosion. Omitting the inner ring reduces parts and minimizes assembly complexity, making life simpler in heavy machinery.
Advanced Insights for Engineers
Engineering today calls for accuracy and ingenuity in cylindrical roller bearings, with the outer ring and inner ring at the center of performance enhancement. From stress analysis to innovative designs, this section discusses major technical developments influencing bearing use in high-risk sectors.
Stress and Load Patterns
Finite element analysis (FEA) indicates that the inner ring and outer ring both experience complicated stresses. The inner ring experiences hoop stresses from close fits, whereas the outer ring may experience fretting if the housing fit is loose. FEA-formed optimized roller profiles diminish edge loading and distribute loads uniformly, extending the life of bearings in tough applications such as continuous casting machines.
Lubrication and Upkeep
Lubrication maintains the inner ring and outer ring raceways in peak condition. Excessive grease raises friction and heat, while inadequate grease causes wear. EP greases, such as SKF's LGEP 2, perform effectively for axial wobble applications, such as printing rollers on machines. Frequent checks on lubricant condition and cleanliness are essential, particularly in bearings without an inner ring or outer ring, where surfaces outside the bearing absorb more stress.
Cutting-Edge Advances
New products such as NTN's full-complement bearings with separators combine high load-carrying capacity with improved speed, using resin separators to reduce friction. NSK's NSKHPS series, which ranges up to diameters of 400 mm, optimizes inner ring and outer ring designs for additional rigidity in large machines. These innovations are a game-changer in wind turbines and industrial gearboxes, where everything hinges on reliability.
Industry Takeaways
Selecting a suitable cylindrical roller bearing that is standard, without an inner ring or an outer ring, is very much dependent on the correct interpretation of load, speed, space, and environment. Bearings without outer ring fit tight automotive applications, those without inner ring are for heavy loads in mining or wind power. Proper installation with exact fits and clearances prevents mistakes or overloads. Maintenance like regular lubrication and vibration checks keeps bearings running longer. In high-end applications like wind energy, advanced inner ring and outer ring materials reduce downtime and increase efficiency.
Conclusion
The inner ring and outer ring are the centerpiece of cylindrical roller bearings, behind their capacity to manage loads and keep machinery running. Inner ring- and outer ring-free designs enable new possibilities for compact or heavy-duty applications, from car transmissions to wind turbines. With advanced materials, precision engineering, and creative designs by NTN and NSK, these bearings continue to break barriers. This guide provides an in-depth excursion for experts to choose and maintain the bearings that drive today's industries with precision and reliability.
