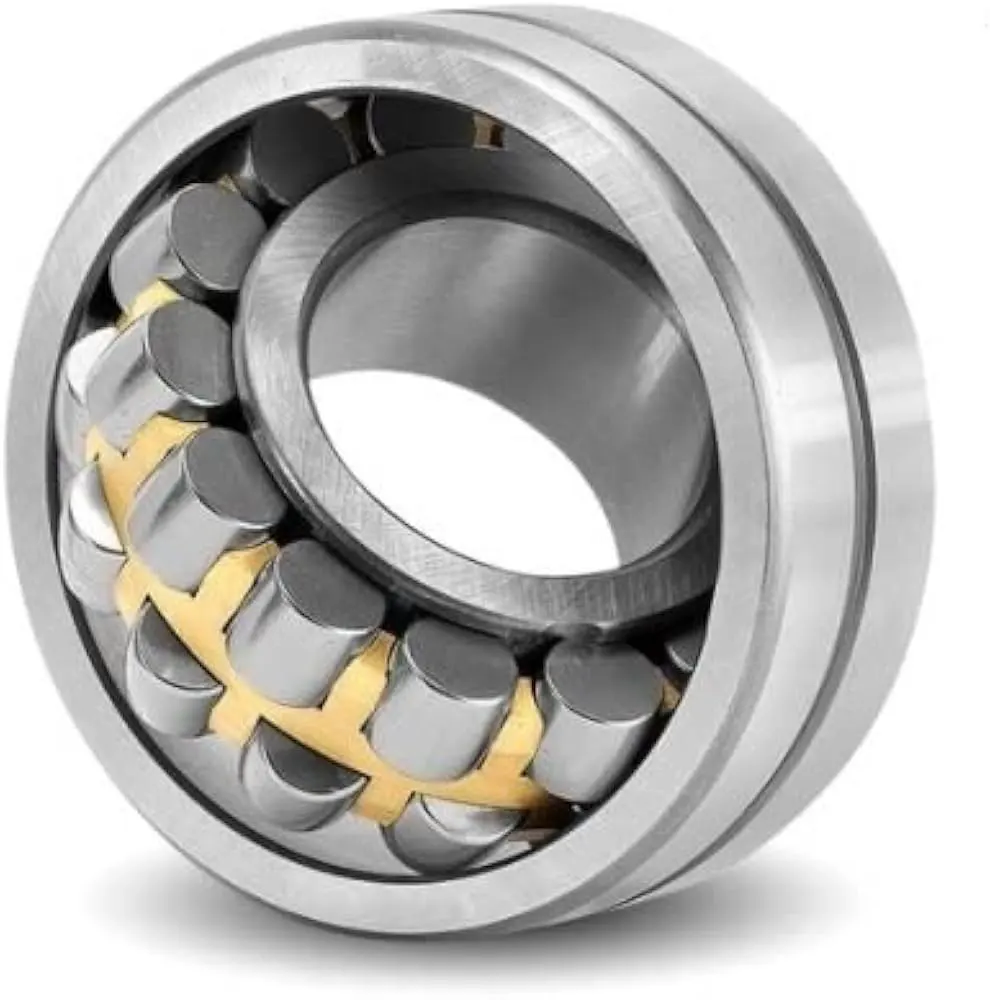

The spherical roller bearing refers to a rolling feature bearing with spherical rollers that function on the principle of rolling contact without much sliding or fretting. Spherical rollers can handle hefty loads, as can axial rollers. When things get a little difficult, they come to the rescue. For tasks like heavy equipment or mining, people would engage with them on a large scale. They can handle shock loads, making them a favored option.
Compared to other kinds of bearings, they have a self-aligning feature, which helps them survive angular discrepancies and shaft deflections. Two rows of barrel-shaped rollers placed in this way facilitate effective load distribution.
Loads applied to spherical roller bearings are often about rotating shafts, heavy-duty machine parts, and maybe even those wobbly, flexible forces. These bearings are created especially with certain materials and lube so performance stays solid when loads get heavy. It is also important to know that it is durable and tough.
What types of loads are suitable for spherical roller bearings?
Many types of loads are supported by spherical roller bearings, such as:
Radial loads
Spherical roller bearings support different loads, including forces that press against a rotating shaft. Spherical roller bearings handle big radial loads well because their rollers spread by force. Extending the carrying life also makes for less stress concentration. Spherical roller bearings help with things like conveyor belts, turbines, plus gearboxes to manage massive radial forces and keep on working.
Axial Loads
Acting parallel to the axis of the shaft, axial loads—also called thrust loads. Although they primarily sustain radial loads, spherical roller bearings may also manage modest axial stresses. The internal design and contact angle of the bearing determines whether one can withstand axial loads. Better axial load-handling ability is shown by bearings with steeper contact angles.
Loads Combined
Bearing combinations of radial and axial forces abound in various uses. Designed to control both, spherical roller bearings guarantee smooth performance under challenging loading situations.
Spherical Roller Bearing Axial Load Capacity
There are various elements affecting the axial load capacity of a spherical roller bearing:
Bearing Structure
The axial load the bearing can carry depends on its internal geometry. Enhanced axial load-carrying capacity results from bearings with ideal raceway curvature and roller shapes.
Contact Angles
Crucially important is the contact angle formed by the raceways and the rollers. Larger contact angle bearings effectively transfer forces across the rollers, hence increasing axial load capacity.
Speed and lubrication
Maxing axial load capacity depends on proper lubrication. High-performance lubricants improve load-handling efficiency, reduce friction, and decrease wear. Furthermore, influencing the capacity of the bearing to control axial loads is the operating speed. High-speed applications require cooling systems and accurate lubrication to avoid overheating.
Attributes of Materials
Axial load capacity is largely affected by the bearing material choice. High-strength alloy steel bearings show exceptional load resistance, hence prolonging operational lifetime in heavy-duty conditions.
To assist makers in selecting appropriate bearings for specific uses, manufacturers offer all-rounder and motionless axial load ratings. Choosing the finest bearing assures dependability and promotes stopping initial failure resulting from very strong axial force.
Spherical Roller Bearing Loads
Dynamic loads
Dynamic loads are those with changing forces throughout bearing rotation. Alternating pressures, shock forces, and changing operating circumstances produce these loads. To guarantee long-term endurance, bearings have to be designed to effectively manage dynamic loads.
For example, operating needs in heavy-duty industrial equipment can cause unexpected load fluctuations on bearings. Designed optimally, bearings assist in minimizing damage resulting from these variances.
Static loads
Static loads are forces operating on a motionless bearing or a bearing running at very low speeds. Localized strains may induce surface deformation or damage in a bearing kept under a high static load without rotation. Static load ratings must be taken into account by engineers to preserve bearing integrity and avoid material fatigue.
Overloads
Early failure might result from too heavy loads exceeding the rated capacity of a bearing. Accelerated wear, too much heat production, and material deformation follow from overloading. Safety margins and load distribution studies help engineers prevent operating overloads and guarantee a bearing lifetime.
Impact weights
Unexpected operating changes like equipment starts or emergency stops provide impact loads—that is, unexpected pressures acting on the bearing. Designed to withstand impact loads, bearings include reinforced construction and specific dampening systems.
Spherical roller bearing axial load calculation
The perfect performance and lifetime of spherical roller bearings depend on axial load calculation. Although both directions of axial loads may be supported by these bearings, axial load capability relies on internal design, bearing size, and contact angle. Knowing the equivalent dynamic bearing load (P), which includes radial (Fr) and axial (Fa) components, using the equation helps one to determine the axial load:
P = X•Fr + Y•Fa,
Where X and Y are factors provided by the bearing manufacturer.
Correct computation guarantees that the chosen bearing can be managed under the operating circumstances without too much wear or failure. Especially in high-speed or high-temperature settings, it is particularly important to take into account the limitations of the axial load relative to the dynamic and stationary load ratings.
Conclusion
Spherical roller bearings are thus quite versatile, handling both substantial radial and axial loads while also checking alignment. For heavy-duty jobs in machines, its strength is unmatched. They are very well lined up, have lifting ability, and other super essential parts.
By knowing axial load capacity, load distribution, and engineering deliberations, manufacturers could improve bearing performance for many machines and equipment. Correct selection, lubrication, and maintenance are crucial for making the most of bearing life and proficiency.
