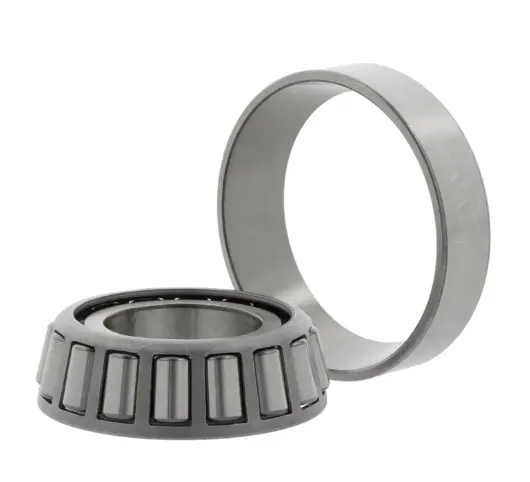

Nowadays, tapered roller bearings are important in powering the machines that keep our world moving. From automobile axles to manufacturing gearboxes, they are created to manage radial and axial loads and are made for difficult jobs. They can deal with load proficiently, depending on a smooth mixture of design structure, composition, and practical operating circumstances.
Knowing the science behind tapered roller bearing load distribution is important for engineers, designers, and maintenance specialists aiming to improve performance and extend the lifetime of machinery. This blog post will delve into the intricate mechanics and explore the factors influencing load distribution. Whether you’re a seasoned expert or new to the field, this comprehensive guide will shed light on the fascinating science of driving tapered roller bearings' load capacity.
How Taper Roller Bearing Works?
One should grasp the design to realize how roller-element bearings work. Balls, ball rollers, tapered rollers, or needle rollers might all find a place in a bearing. They have raceways in both an inner and an outer ring for the caged components. They also have seals to stop particulates possibly contaminating the oil from entering and a lubricant to lower friction.
As the rolling elements move along the raceways, the cage pockets keep them evenly spaced and prevent contact between them. Roller bearings are found in single- and double-row parts, among other combinations.
The caged components may roll in the raceways along a single axis thanks to cylinders between the inner and outer races. In the absence of cages, the rolling parts may become misaligned while running, ultimately causing the bearing to fail. The cages retain the rollers in place; they do not bear any weight. FCBs—Full Complement Bearings are cage-free bearings that increase the density of rolling. FCBs are built having more rolling parts, allowing them to handle heavier loads. Since the rollers equally distribute the weight along the racetrack, they can also resist unexpected shock loads.
Roller bearings also need to be lubricated. The brand you purchase will determine whether or not you need to grease them. Usually, pre-lubricated, sealed roller bearings do not require any additional grease.
Usually less than one millimeter, a lubricant is applied in the greasing procedure at pressure levels up to 34,500 bar (500,000 psi). The grease elastically deforms the rolling parts and the contact surface and somewhat solidifies them. Lubrication contamination can significantly harm the contact surfaces and result in a self-escalating cycle of wear.
This risk is intensified in applications where tapered roller bearings are essential, such as automotive and industrial equipment, specially designed to manage combined loads—both radial and axial.
Taper Roller Bearing Load Calculation
After figuring out the radial and axial loads on that taper roller bearing, calculating the Equivalent Dynamic Bearing Load (P) becomes crucial. Consider it this way: bearing takes one ideal hit instead of real-world pounding. Calculating P properly helps pick a good bearing and keep it running long-term.
The formula for the equivalent dynamic bearing load for taper roller bearings is:
**P = X * F_r + Y * F_a**
Where:
**P** = Equivalent dynamic bearing load
**F_r** = Radial load acting on the bearing
**F_a** = Axial (thrust) load acting on the bearing
**X** = Radial load factor (depends on bearing type and load conditions)
**Y** = Axial load factor (depends on bearing type and load conditions)
The values of X and Y are given by bearing manufacturers. It depends on the ratio of axial to radial load and the bearing’s inner design. Normally, for taper roller bearings, axial loads have a huge effect on the way the bearing works, so these factors must be carefully chosen during selection and design.
To proceed:
Identify the values of F_r and F_a from your load analysis or measurements.
Refer to the bearing manufacturer’s catalog or technical guidelines to find the appropriate X and Y factors for your specific bearing model and load ratio.
Substitute the values into the formula to compute P.
This correspondent load P is then applied in additional calculations, like checking the bearing’s force load rating and service life. By precisely calculating, you will be assured that your bearing selection and design can survive operational stresses, offering consistent and well-organized machinery functionality.
Taper Roller Bearing Load Capacity
Tapered roller bearings support higher loads due to their exclusive design. Rollers and raceways are angled to help spread force better than regular bearings can. This lets them manage substantial pushes and pulls properly while maintaining stability in radial.
Factors Influencing Load Capacity
Steeper contact angle
Axial load capacity increases, but radial support slightly reduces.
Roller size & quantity
Larger rollers or small rollers might help handle total loads better.
High-quality alloys
They ensure durability even when stress gets heavy.
Lubrication and surface finish
Proper lubrication minimizes friction, enhancing efficiency and lifespan while maintaining stability in radial directions.
Taper Roller Bearing Axial Load Capacity
Tapered roller bearings are specifically designed to manage both radial and axial (thrust) stresses. Their conical roller and raceway shape guarantee that the bearing can handle large axial loads in one direction. The angle of the bearing cup and cone determines the greater contact angle that enhances the axial load capacity of a taper roller bearing.
Practically, the larger the angle, the more control one has over axial forces. When axial stresses exist in both directions, double-row, and matched pair arrangements are also used. However, good alignment, preload, and lubrication must be maintained for the best performance and lifetime.
The manufacturer usually states that axial load capacity is dynamic, and static load ratings should be closely aligned with the application's needs.
Bottom Line
Tapered roller bearings are essential in areas with radial and axial loads. Their geometry, material power, and lubrication methods must work harmoniously to ensure optimal load distribution and long service life. By knowing the science of load calculations and the factors influencing axial load capacity, engineers can make informed decisions that maximize performance and reliability.
In essence, getting the load capacity correct is a technical requirement. Its strategic move toward well-organized, sturdy, and trouble-free machinery operation ensures long-term reliability.
